Diagnostic Scan Tool OBD2 Scanner Plug and Play Car Fault Code Readers Scanners

OBD2 Scanner Diagnostic Tool – Engine Code Reader with Reset & I/M Readiness

2.8" HD Color Screen | 10,000+ DTC Library | Plug & Play | Works on 1996+ Vehicles

Diagnose your vehicle like a pro with this powerful OBD2 scanner. Read and clear fault codes, monitor real-time data, and check emissions readiness—all without needing an app or internet connection.

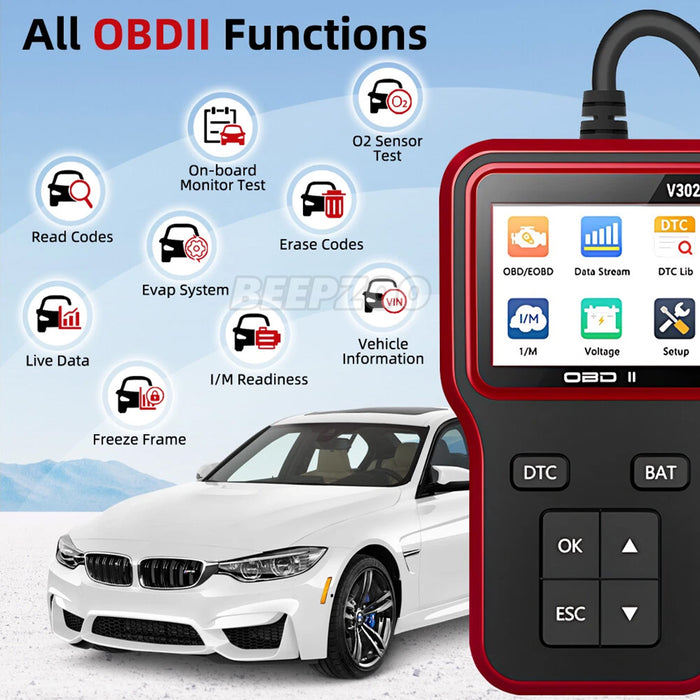

Key Features

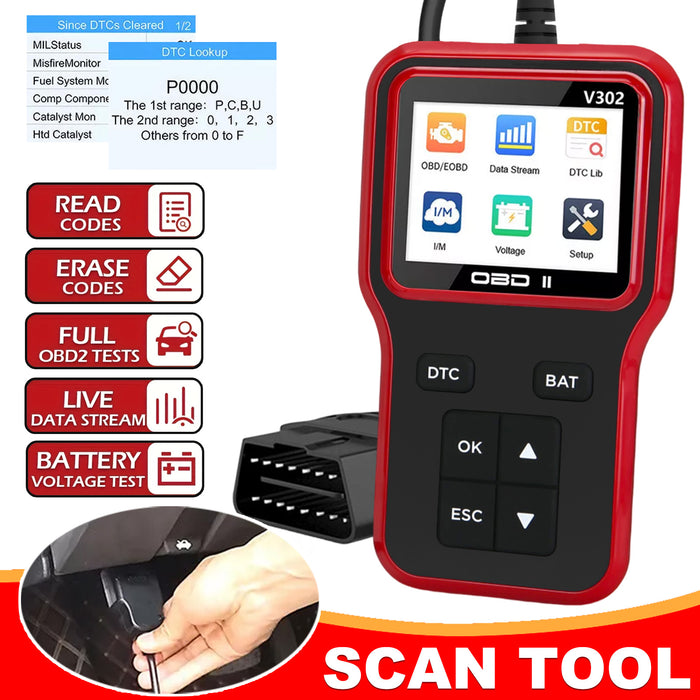

• Read & Erase Codes – Diagnose and turn off the check engine light after repairs

• Live Data Stream – View real-time data like speed and voltage in graph format for easy analysis

• I/M Readiness – Check monitor status to see if your vehicle is ready for emissions testing

• EVAP System Test – Detect issues in the fuel evaporation system

• Oxygen Sensor Test – Monitor O2 sensor performance to improve fuel efficiency

• Battery Voltage Test – Check battery health and charging status

• Vehicle Info (VIN) – Retrieve VIN, calibration ID, and more for accurate part replacement

• 10,000+ DTC Library – Built-in database explains fault codes instantly—no online searching needed

• 2.8" HD Color Screen – Clear, easy-to-read display reduces eye fatigue

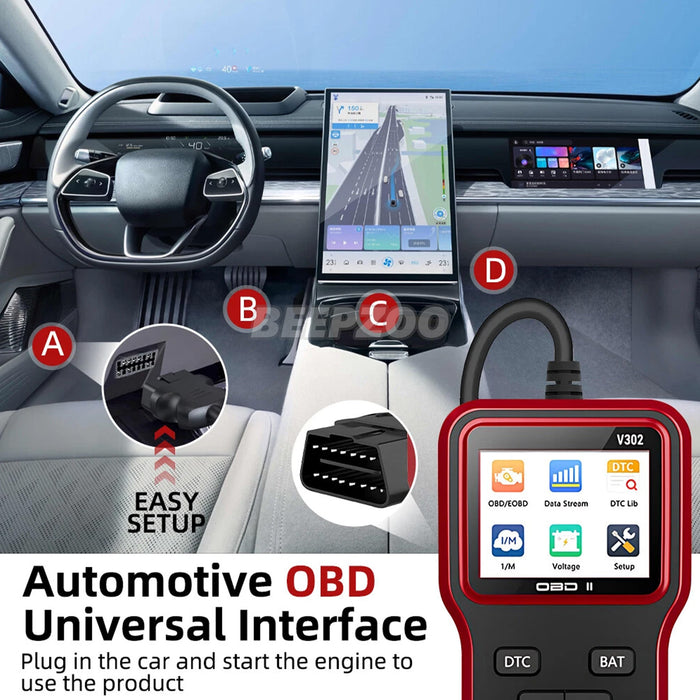

• Plug & Play – Powered directly by the vehicle's OBD2 port. No batteries, no Bluetooth, no app required

• 3 Status Lights – Quick visual indication of system status—beginner friendly

• Multi-Language Support – English, Spanish, French, German, Italian, Dutch, Russian, Chinese

Specifications

• Operating Voltage: 9-16V

• Operating Temperature: -30°C to 70°C

• Storage Temperature: -30°C to 70°C

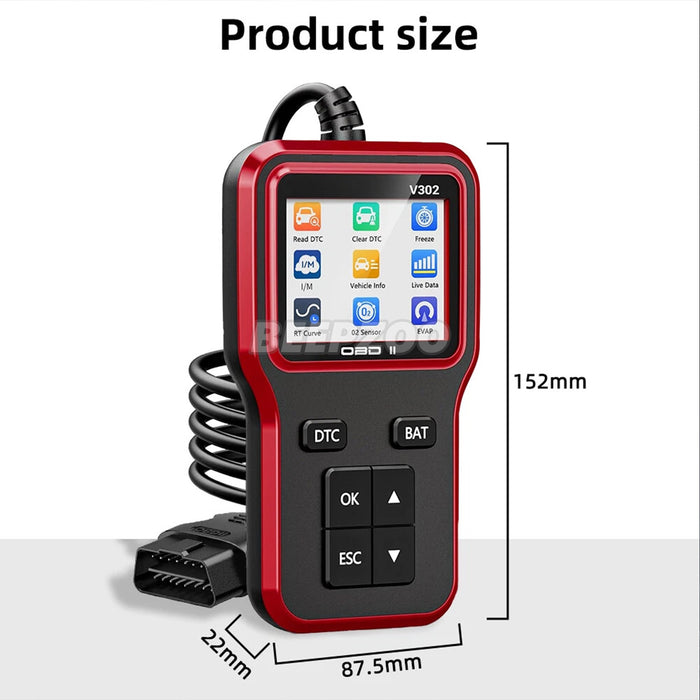

• Product Size: 152 x 87.5 x 22 mm

• Product Weight: 198g (unit only) / 315g (with packaging)

• Screen: 2.8" HD Color Display

Supported Protocols

• SAE J1850 PWM (41.6Kbaud)

• SAE J1850 VPW (10.4Kbaud)

• ISO9141-2 (5 baud init, 10.4Kbaud)

• ISO14230-4 KWP (5 baud init / fast init, 10.4 Kbaud)

• ISO15765-4 CAN (11/29 bit ID, 250/500 Kbaud)

Vehicle Compatibility

• American Vehicles – 1996 and newer (including Brazil)

• European Vehicles – 2004 and newer

• Asian Vehicles – 2006 and newer (including Australia)

• Russian Vehicles – Select Ssangyong and LADA models (2007-2017)

Full compatibility list available—contact us with your vehicle details to confirm.

Package Includes

• 1 x OBD2 Scan Tool

• 1 x User Manual
